$7,099,000 (USD)

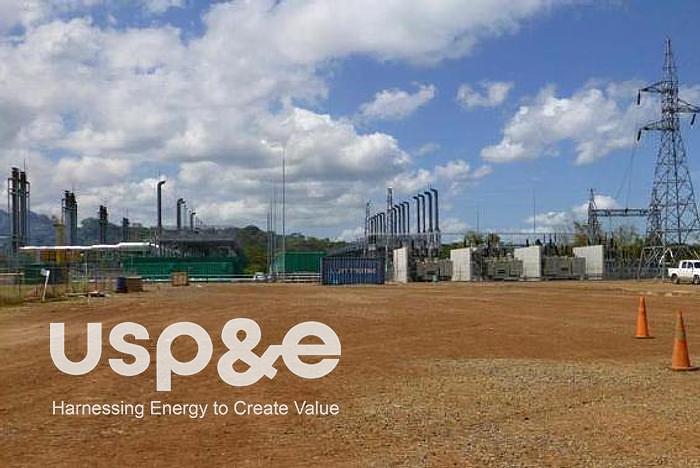

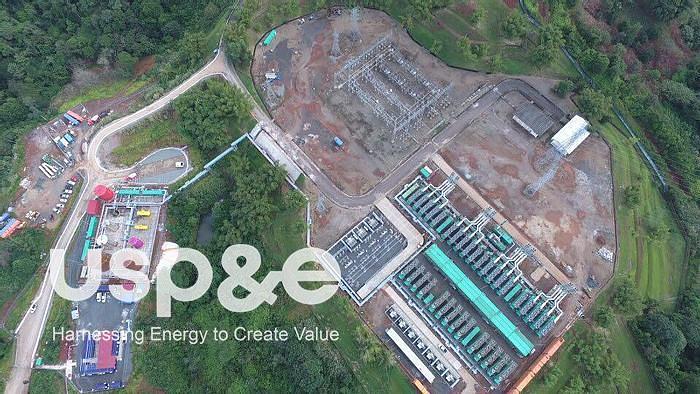

23.8 MW 2016 Low Hour Hyundai Himsen 9H21/32 HFO Packaged Power Station

No longer available

Description

EXCLUSIVELY FROM USP&E!

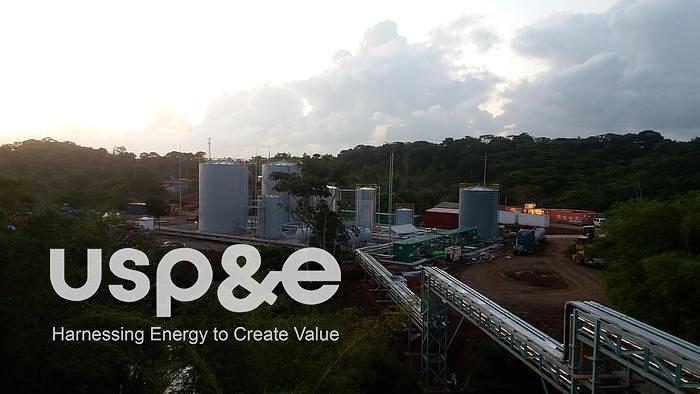

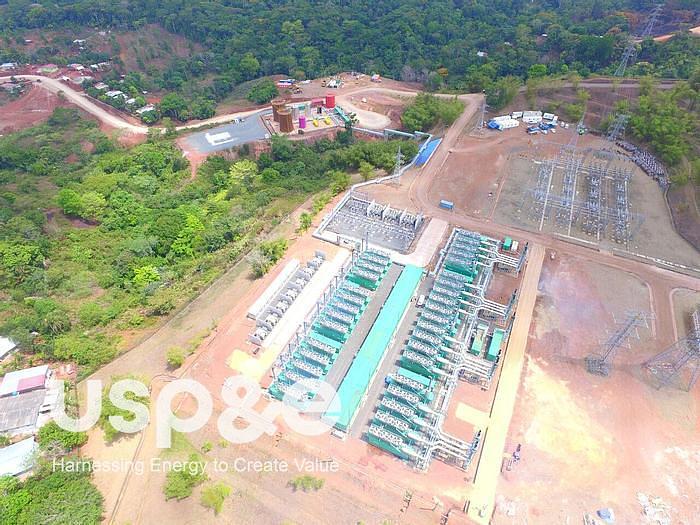

USP&E is selling a 23.8 MW 2016 Low Hour Hyundai Himsen 9H21/32 HFO Packaged Power Station


See the following specs for this high quality power station -

Exclusively Sold by USP&E. Request a quote to Enter negotiations for this hot product.


GENERAL INFORMATION

 Available Quantity: Thirty-Four (34) Units

 Operation Hours: 6,600 hr. on average

 Last Maintenance: 6,000 hr. (HHI Manuals)


TECHNICAL SPECS

 Engine Model: 9H21/32

 Gross Capacity: 1,701 kW

 Net Capacity: 1,600 kW

 Frequency: 60 Hz

 Speed 900 rpm

 Genset Voltage 4.16kV

 Cooling Method: Radiator

 Fuel Type: Heavy Fuel Oil / Light Fuel Oil

 SFOC at Genset: 204 g/kWh at 42,700 kJ/kg

 Total Weight: 50 ton

 Dimension (W*H*L): 2.4m * 3.4 m * 12 m

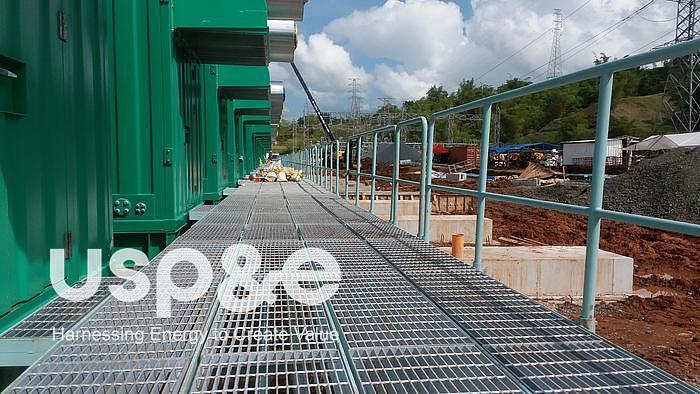

 Enclosure 40’ container, 85 dB(A) @ 1m


OTHER AVAILABLE COMPONENTS

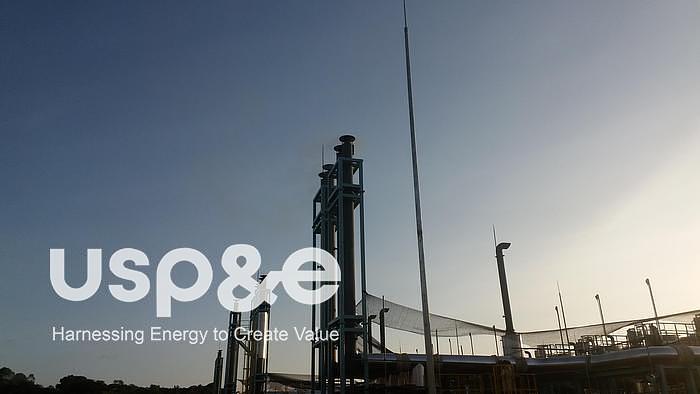

 Exhaust Gas Boiler (Heat Recovery System)

 Pump Station Unit

 HFO Treatment Unit

 Air Compressor Unit

 HFO Purifier Unit

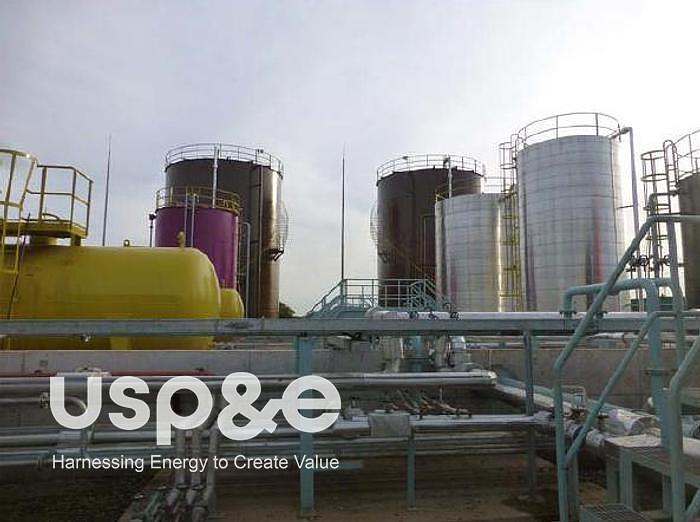

 Fuel Oil and Lube Oil Tanks

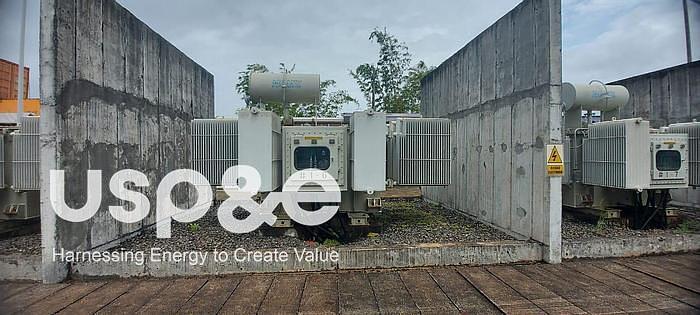

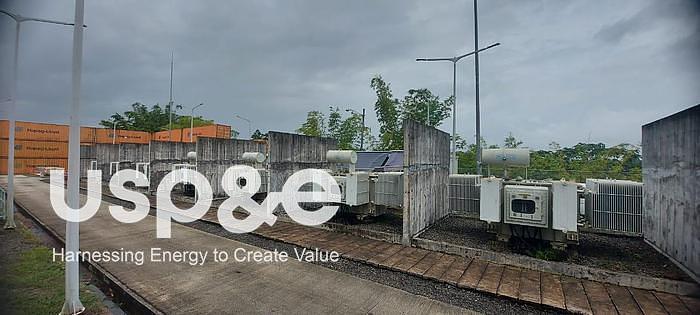

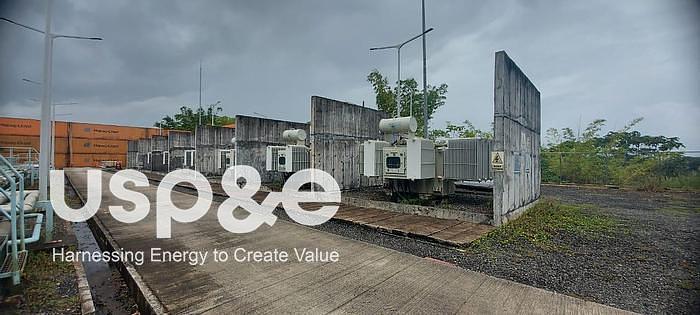

 Step-up transformers 4.16/34.5kV & 34.5/115 kV.

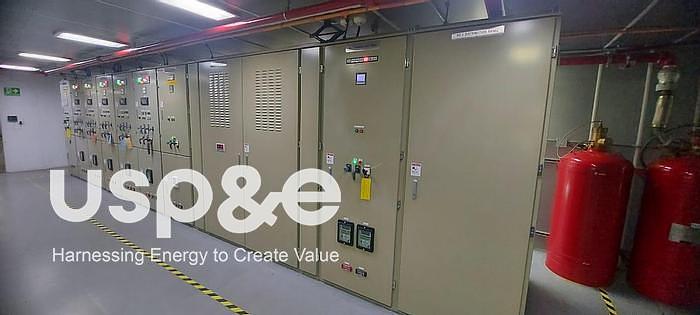

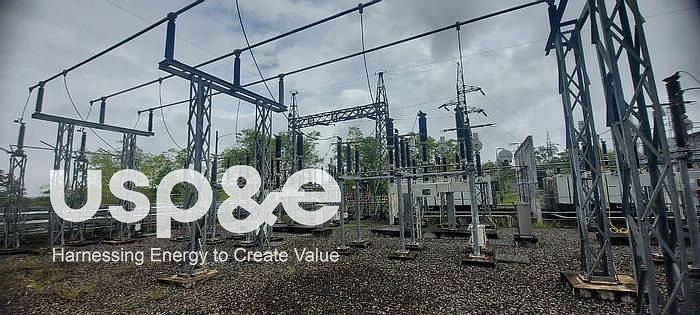

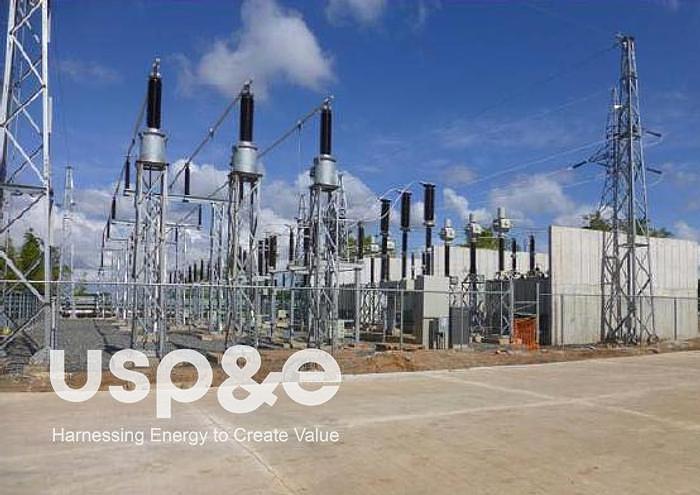

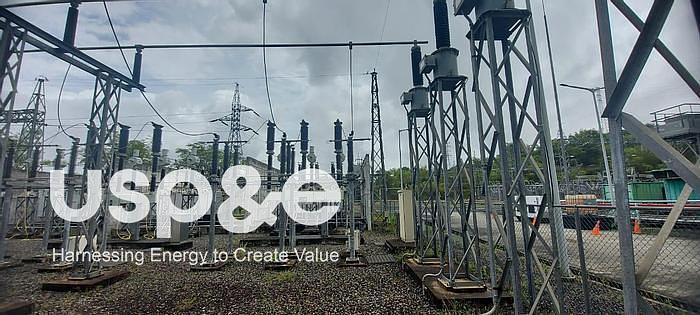

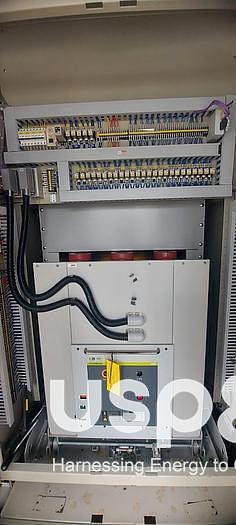

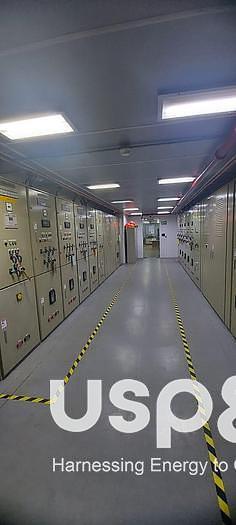

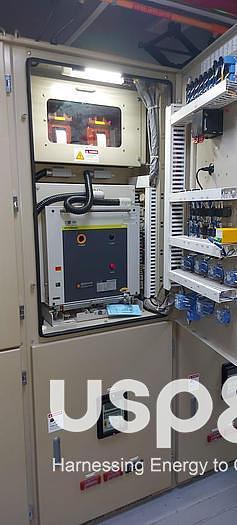

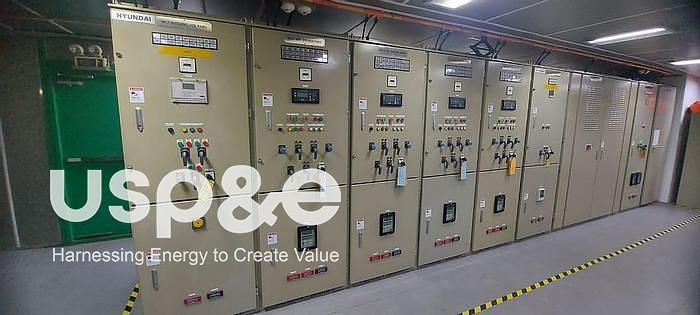

 Switchgears at 4.16, 34.5 & 115 kV.

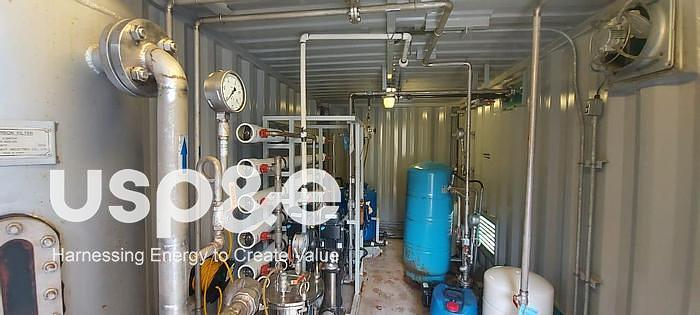

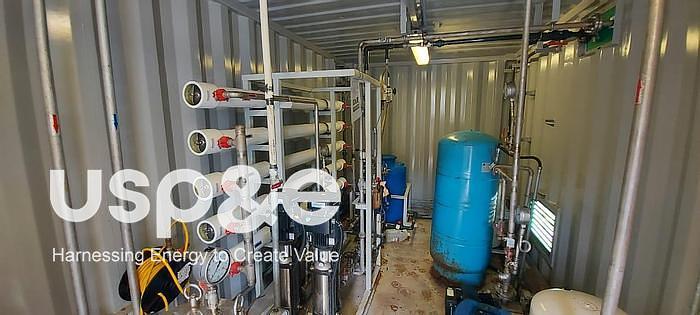

 Water Treatment Unit

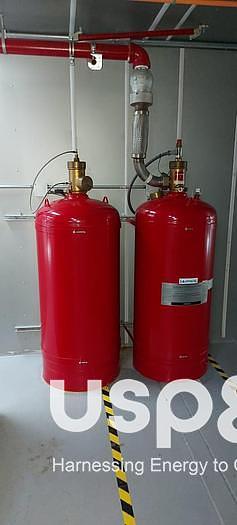

 Fire Fighting System

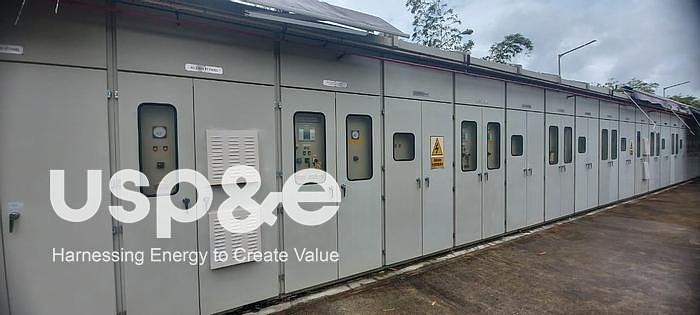

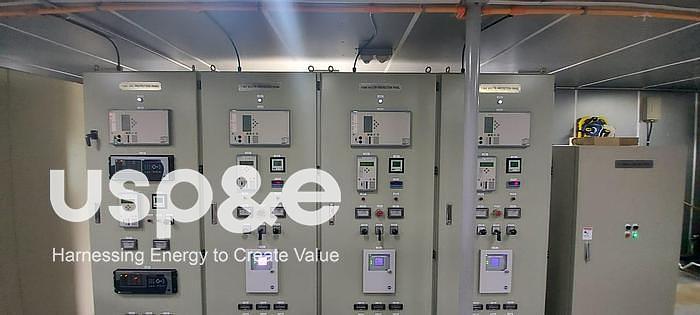

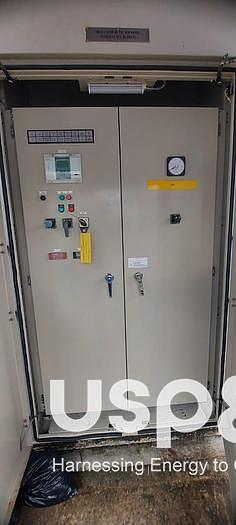

 Electric Control Unit

 Black Start Diesel Engine


**Note that price is per unit

Images may be representative, and actuals can be supplied upon request.



Installation and EPC and O&M services available - worldwide - through USP&E.

We look forward to working with you!

Call or email us today at info@uspeglobal.com

Specifications

ManufacturerHyundai Himsen
Model9H21/32
Year2016
ConditionUsed
Stock NumberUSP009317
Wattage23.8 MW
HoursLow Hours
Frequency60 Hz
Fuel typeHFO
