$6,034,050 (USD)

42.8 MW Used GE LM6000PD Natural Gas Generator

orCall +1 612-803-8112

Description

EXCLUSIVELY FROM USP&E!


USP&E is selling a Used 42.8 MW GE LM6000PD Natural Gas Generator, Very well Maintained and well priced!


MORE INFO:

-Manufacturer: GE

-Model: LM6000PD (Dry Low NOx) -Power output (ISO): 42.8 MWel -Gross efficiency: 41.4% -Fuel: Natural Gas -Inlet air chilling system coil system (adsorption chiller)


Generator data -60 MVA, 11.5 kV, 50 Hz


Steam Turbine -Manufacturer: Nuovo Pignione, condensation turbine with two steam bleeds, whereas one bleed is with regulated steam pressure -Power output: 10.2 MW (max. 11.2 MW)


Steam Parameters HP: 40 bar, 420 oC, 40.8 t/h LP: 4 bar, 180 oC, 15.5 t/h Condenser ACC (Air Cooled Condenser), 0.14 bar


Generator data 14 MVA, 15 kV, 50 Hz

HRSG -Manufacturer/Type: BBP, horizontal, two-pressure boiler with a natural circulation, with additional burners, without bypass damper. -Step-up transformer three-coil unit step-up transformer (TR-1) with parameters 115 ± 8x 132/11.5/15kV, 75/60/15MVA with a switch of live jaws on HV side of the step-up transformer.

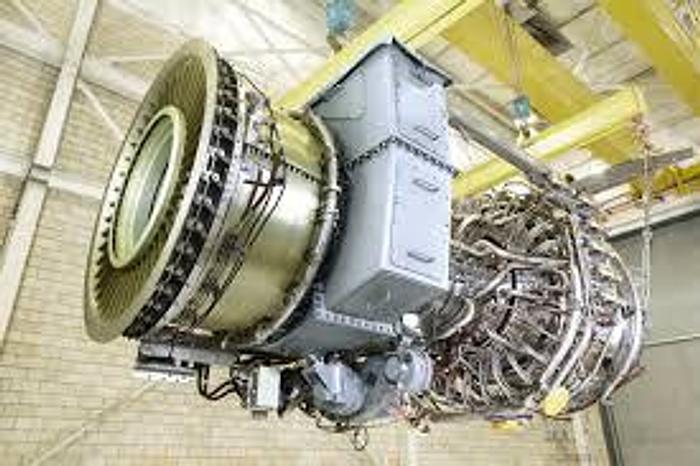

Images provided are stock images for representative purposes only and actuals can be supplied upon request.


Installation and EPC and O&M services available - worldwide - through USP&E.

We look forward to working with you!

Call or email us today at info@uspeglobal.com

Specifications

ManufacturerGE
ModelLM6000PD
Year2013
ConditionUsed
Stock NumberUSP009009
Wattage42.8 MW
HoursLow hours!
Fuel typeNatural Gas
Frequency50 Hz
