$2,400,000 (USD)

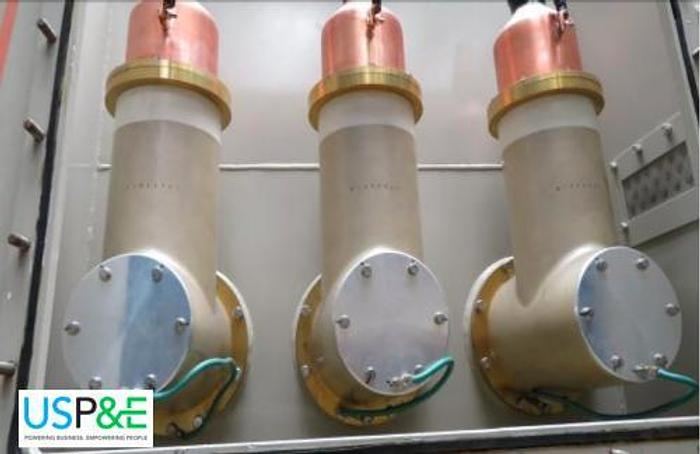

12 MW 2018 Used Kawasaki MIT-26 HFO Power Plant

orCall +1 612-803-8112

Description

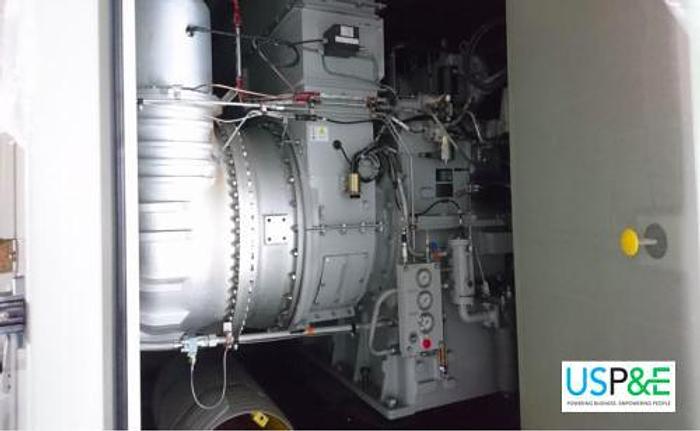

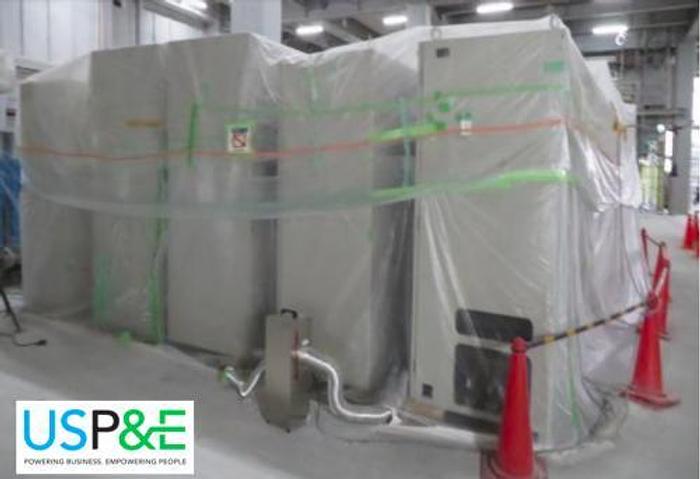

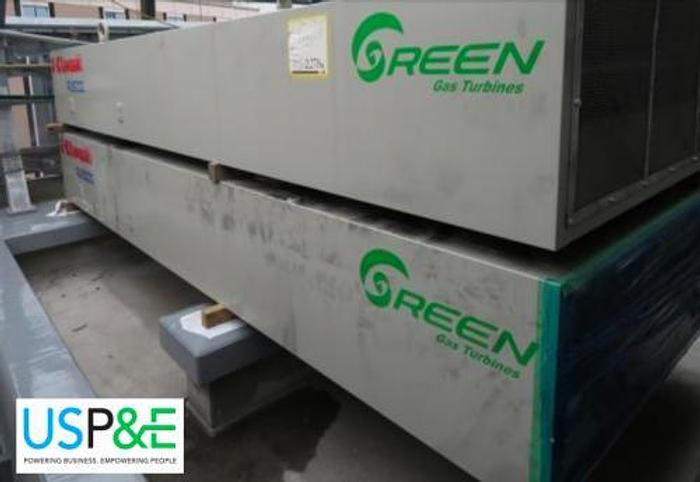

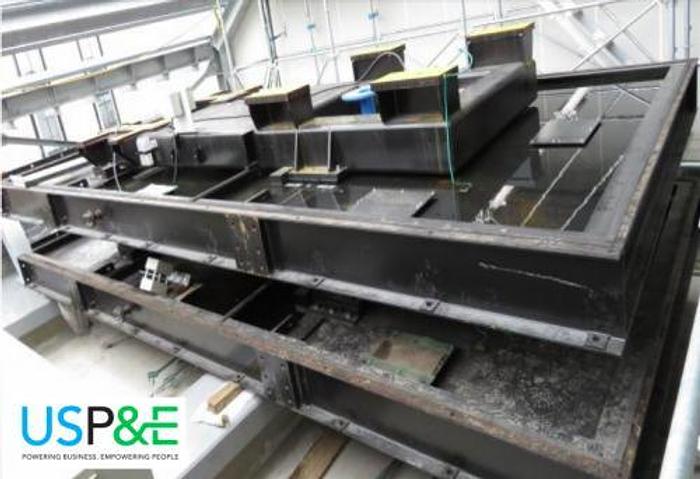

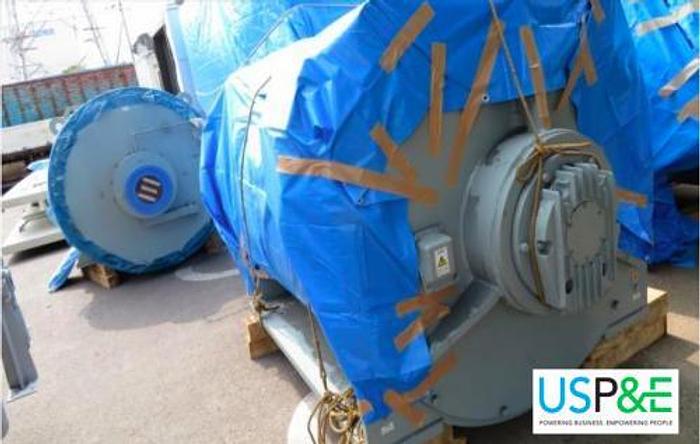

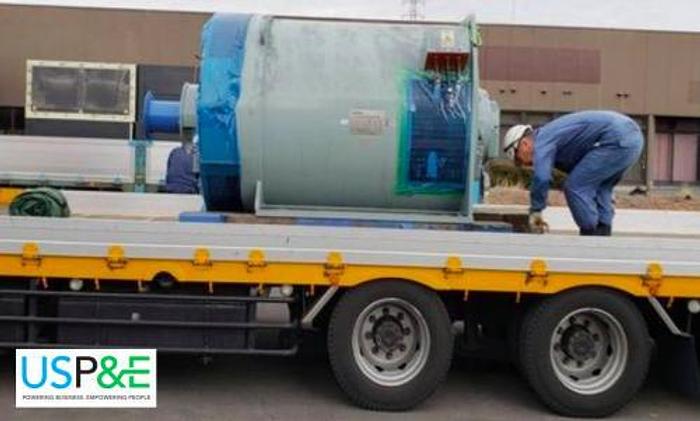

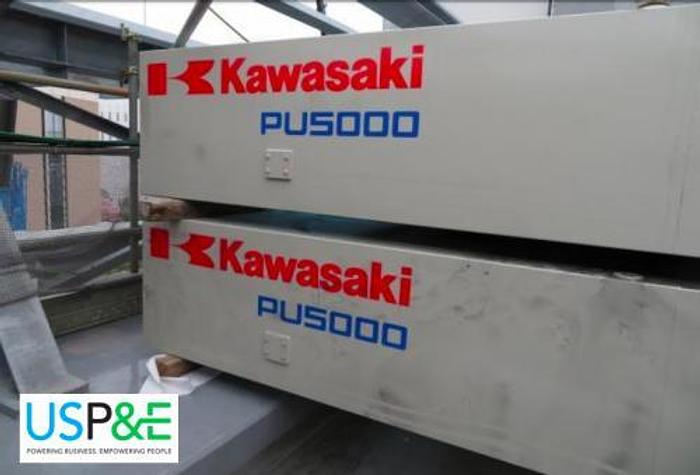

12 MW 2018 Kawasaki MIT-26 HFO Power Plant Emergency Synchronous Generators manufactured by: Toshiba The power generator consists of a gas turbine, AC generator, and auxiliary equipment necessary for operation. It shall be mounted on a common base and housed inside an outer case. • The outer box has a door attached with HINGE and shall be lockable. •1000 Running Hours for Service and Maintenance Purpose only. Exhaust system: Single exhaust system Construction: • In the outside box The main equipment to be installed is as follows: • 1. Gas turbine Kawasaki MIT-26 (including reduction gear) Hitachi Model MPG160-23: 3 units • 2. Alternator 3 units • 3. Starter motors • 4. Fuel supply system • 5. Lubricant oil supply device Coupling method: • The gas turbine main shaft is coupled with the generator through the reduction gear and the coupling Startup method: DC motor start powered by storage battery Speed characteristics: Isochronous Control Key points of the gas turbine that drives the generator are as follows: • Format: Simple release cycle 1 axis type Construction Consists of a centrifugal two-stage compressor, an axial flow four-stage turbine, a single-tube can combustor and a reduction gear. • Output: 4,347kw (40℃) • Rotational speed: Turbine main shaft 22,000min⁻1 • Output axis 1,500min⁻1 • Reduction gear: Planetary + Parallel gear reducer • Starter motor: Electric type • Fuel controller: Electric type A heavy oil No. 1 (JIS K 2205) • Fuel used Oil type: Synthetic base oil (AEROSHELL ASTO-500) • Used lubricating oil: Oil amount: 240L Manufacturers Recommended Fuel property limit conditions: • Heavy Fuel Oil: • 1. Dynamic viscosity (50 ° C): 2.0 to 2.8 mm2 / s • 2. Sulfur content: 0.5% wt or less • 3. 10% residual oil residual carbon content: 0.55% wt or less • 4. Density (15 ° C): 865 kg / mm3 or less Alternators specifications: • Format: Protective type, free air flow type (IP22) • Construction: Horizontal axis type, rotating field type • Rated capacity: 5000kv • Rated output : 4000kw • Rated voltage: 6,600V • Rated current: 437A(reference) • Rated power factor: 0.8 (delay) • Rated continuous: Continuous • Frequency: 50Hz Includes: Transformers (2 Units) • Type: Load tap switching • Standard JEC-220-2014 • Phase number 3 • Rated frequency 50Hz • Cooling method ONAN / ONAF • Rated Capacity (KVA) Primary 20000/22000 Secondary 20000/22000 • Rated voltage (V) primary 6600 secondary 6600 • Rated current (A) primary 175/192 secondary 1750/1925 • Test voltage value (KV) primary L1 350 AC 140 secondary L1 60 AC22 • Temperature rise limit • Number of turns 65K Oil 60K • 23T each in weight

Specifications

ManufacturerKawasaki
ModelMIT-26
Year2018
ConditionUsed
Stock NumberUSP009137
Wattage12 MW
Hours1000 Hours
Fuel typeHFO
Frequency50 Hz
