$618,600 (USD)

2.25 MW 2004 Used Caterpillar G3516 Natural Gas Generator

orCall +1 612-803-8112

Description

EXCLUSIVELY FROM USP&E!


USP&E is selling a Used 2.25 MW 2004 Caterpillar G3516 Natural Gas Generator in great condition!


Additional Info:

Made up of 3 x CAT G3516 750kW Gensets


Engine: CAT G3516

Generator Kato MTG836

1200RPM, 4160V, 60 cycle

-8 to 1 compression pistons. , air/gas starting, double harmonic balancer, Rocore split core engine driven radiator F80 8/5-3/1P (heavy duty for high ambient temp), new style Kato single bearing

-with filtration element, heavy duty master skid with loading hitches, drip pan, engine/gen mounting rails, skid mounted engine generator status control panel (class 1, Div 2), fuel gas pressure regulator piped to edge of skid, wiring in braided s/s lines, combination muffler/catalyst with piping, oil level regulator w/tank, welded steel stand for muffler/catalyst maintenance, switchgear: Powell Electric Manufacturing company, G.E. 489 Generator Management relay, Basler Electric sync-check relay, Rated Max: 5KV, 60Hz, 60kV BIL, Rated Power Frequency withstand 19kV, Rated Main bus cont. current 1200 amp, Rated short-time: 50kA, Rated Momentary: 80kA, Date of Mfg. Sept. 2004, three bay system with draw out breakers.

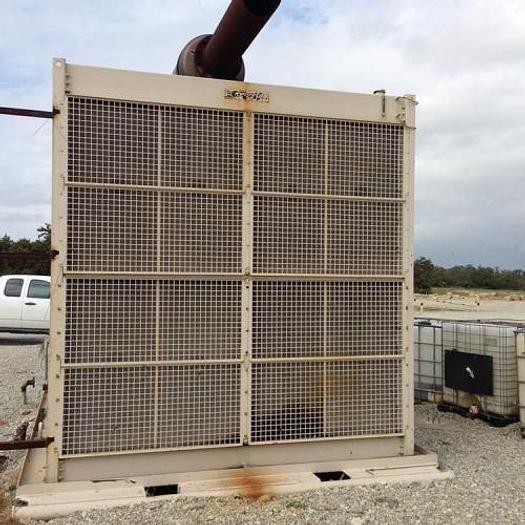

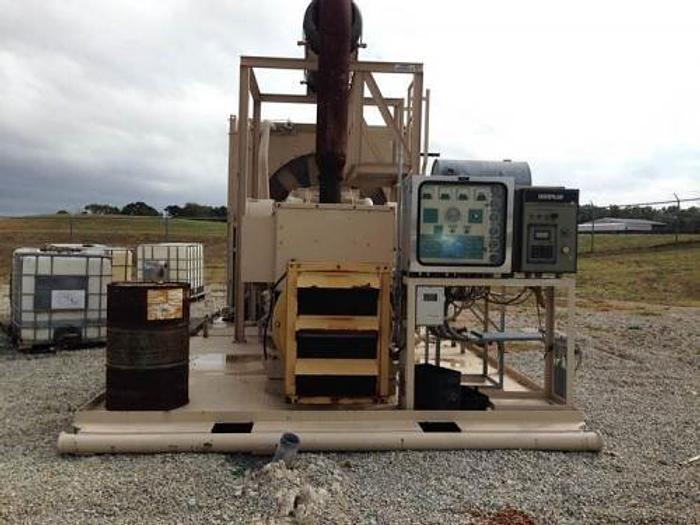

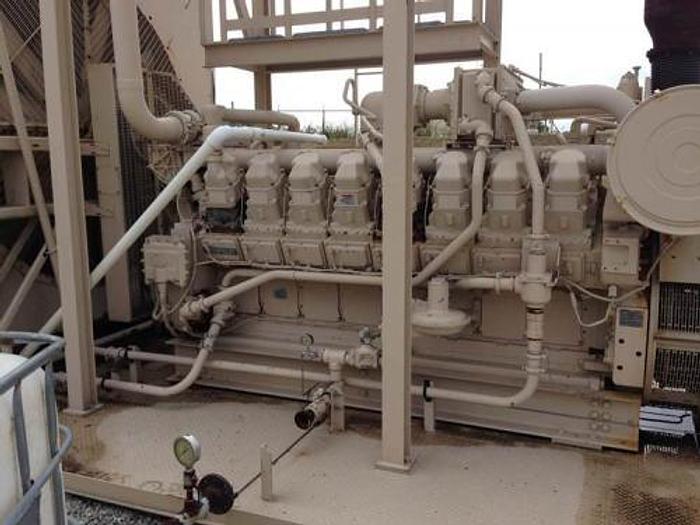

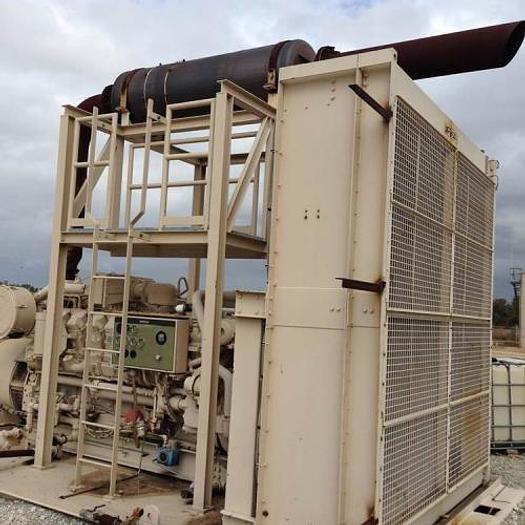

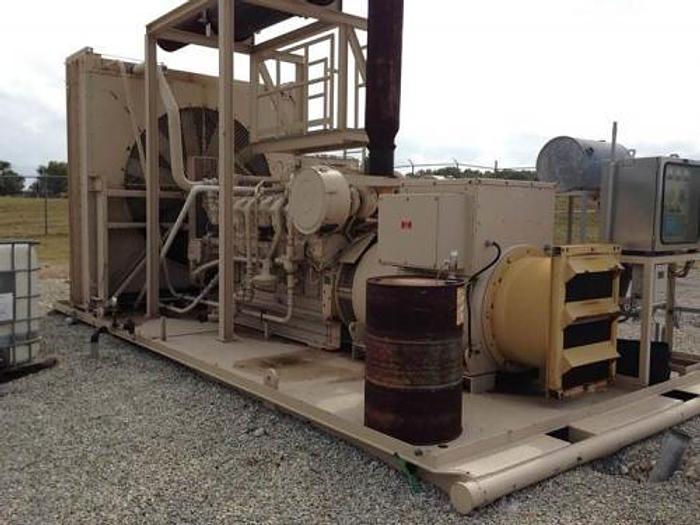

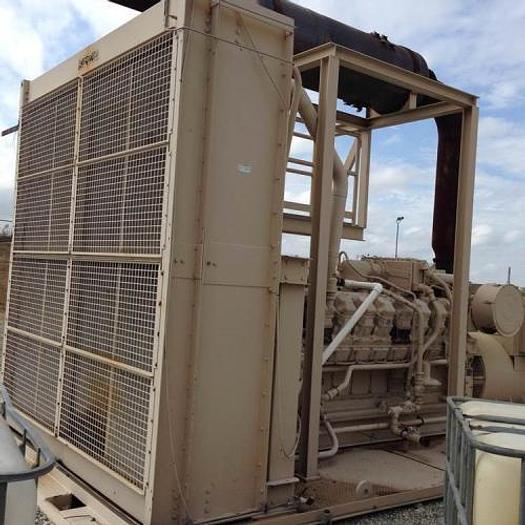

Images provided are stock images for representative purposes only and actuals can be supplied upon request.


Installation and EPC and O&M services available - worldwide - through USP&E.

We look forward to working with you!

Call or email us today at info@uspeglobal.com

Specifications

ManufacturerCaterpillar
ModelG3516
Year2004
ConditionUsed
Stock NumberUSP009053
Wattage2.25 MW
HoursLow Hours
Fuel typeNatural Gas
Frequency60 Hz
