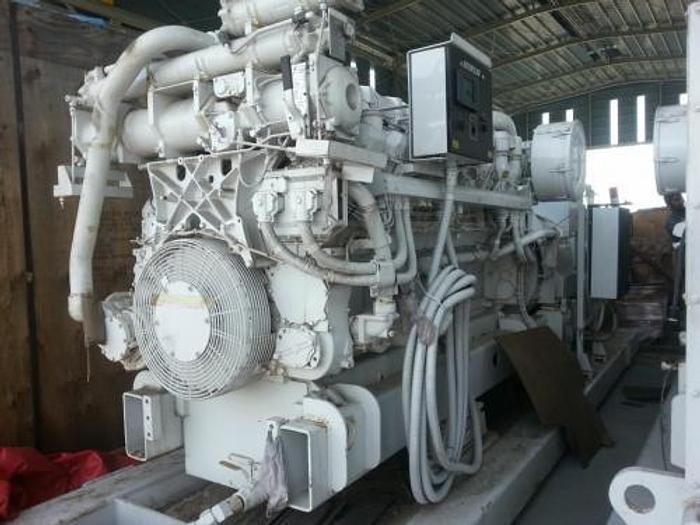

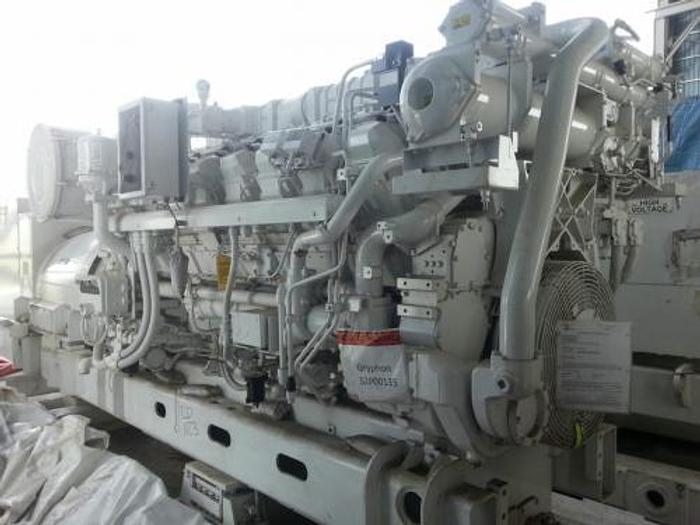

1.5 MW 2006 New Caterpillar 3516B DITA Diesel Generator
Description
EXCLUSIVELY FROM USP&E!
USP&E is selling a NEW 1.50 MW 2006 Caterpillar 3516B DITA Diesel Generator! MANUFACTURER: CATERPILLAR ENGINE MODEL: 3516 ROTATION: CCW PERF SPEC: 0K5488 MAX ALT: 1800 M FULL LOAD STATIC FUEL: 27.6 MM FUEL TIMING: 64.34 MM POWER: 1383 KW AT 1200 RPM BARE ENGINE HI IDLE: 1212 RPM FTS (SLOPE): 0 FTS (INTERCEPT): 0 ECM SOFTWARE: 3050823 INJECTOR: 2501300 TURBO: 2768957 TIER 1 SPEC FOR 1 UNIT (REPETITIVE FOR ALL) ENGINE ALTERNATOR MANUFACTURER: NATIONAL OILWELL / BAYLOR GENERATOR GROUP AC SYNCHRONOUS PH: 3 HZ: 60 RPM: 1200 FRAME: 370 PF: 0.7 AMB: 50 DEG C VOLTS: 600 CONT KW: 1505 KVA: 2150
AMPS: 2069
INSULATION: H
FIELD: H
ENCLOSURE: IP23
TEMPERATURE RISE-ARM: 90 DEG C,
FIELD: 90 DEG C
EXCITER FLD VOLTS: 78 SER., 39 PAR.
PMG-VOLTS: 240
EXCITER FLD AMPS: 2.6 SER., 5.1 PAR.
Installation and EPC and O&M services available - worldwide - through USP&E.
We look forward to working with you!
Call or email us today at info@uspeglobal.com
Specifications
| Manufacturer | Caterpillar |
| Model | 3516B DITA |
| Year | 2006 |
| Condition | New |
| Stock Number | USP009107 |
| Wattage | 1.5 MW |
| Hours | New! |
| Fuel type | Diesel |
| Frequency | 60 Hz |
