$1,925,000 (USD)

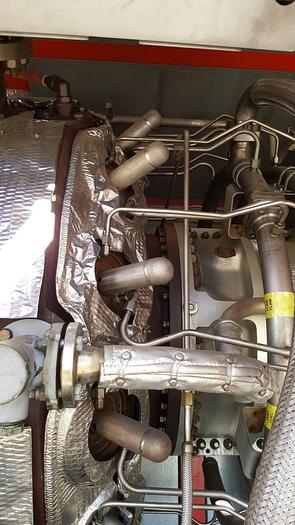

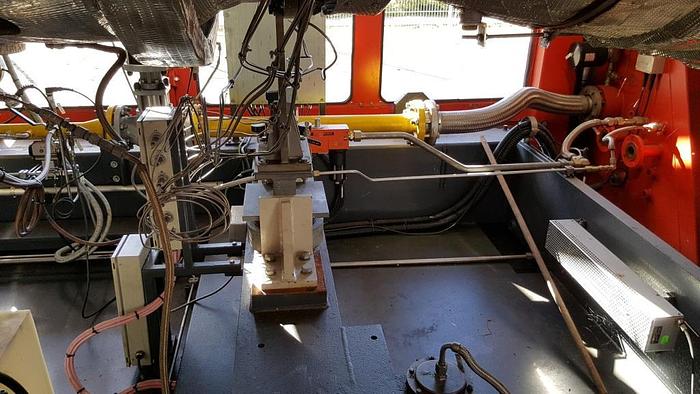

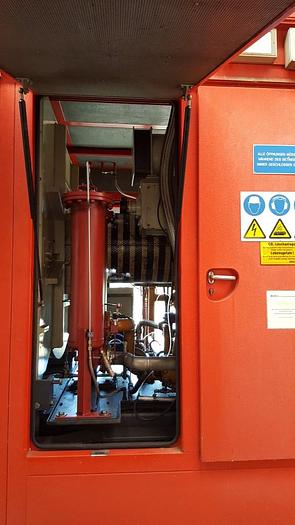

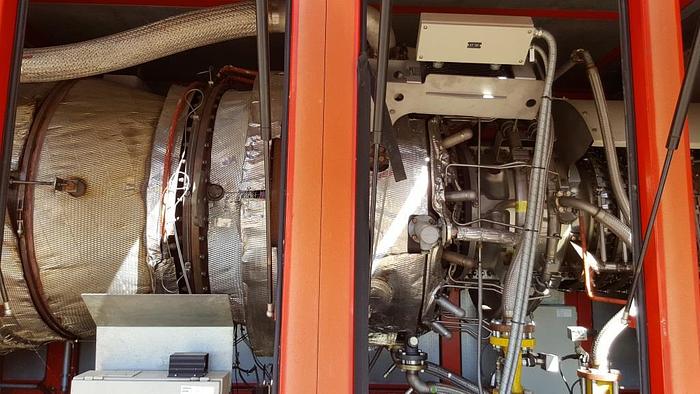

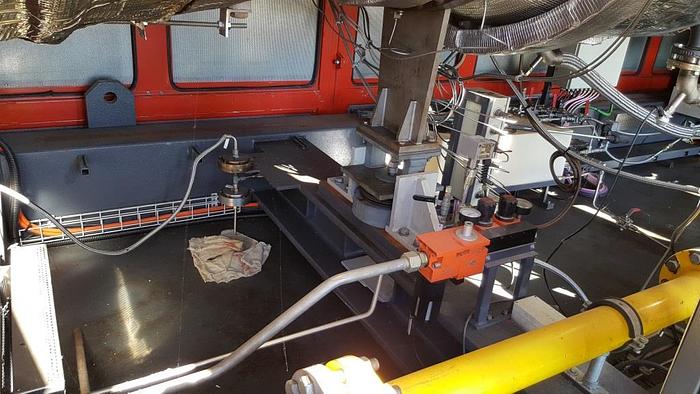

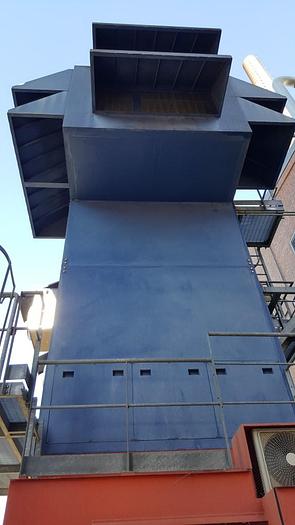

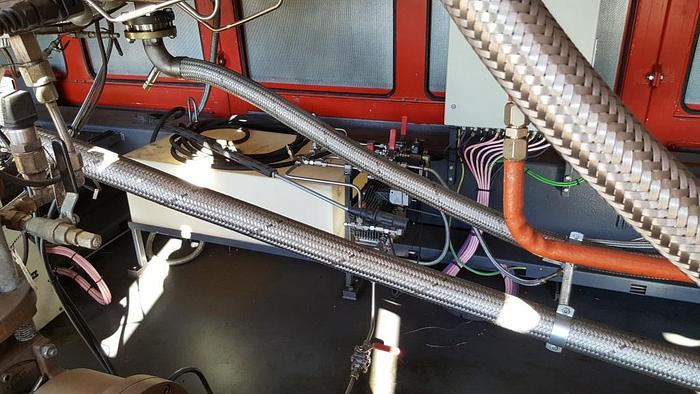

11.8 MW 2005 Used Solar Titan 130 Gas Turbine Generator

orCall +1 612-803-8112

Description

EXCLUSIVELY FROM USP&E!


USP&E is selling 11.8MW 2005 Solar Titan 130 Gas Turbine Generator well maintained and great price!

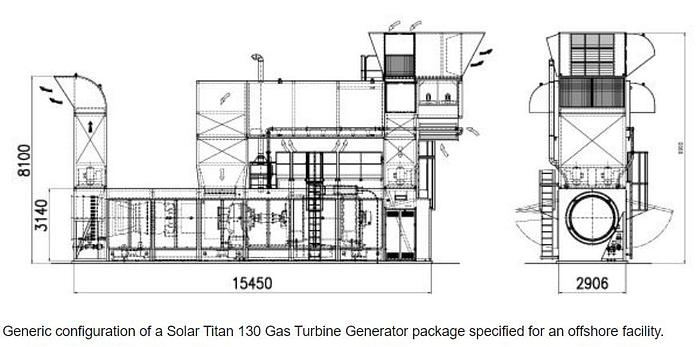

Additional Info: 1.1. TURBINE ENGINE Manufacturer: Solar Turbines INC, San Diego USA Model: Titan 130 with Solonox combustion Packager: Turbomach Yoc package: 2005 Operating hours: about 15,500 (Whole Plant), 150 Starts Was operated until 2007, after that standby Condition: fully serviced by Turbomach and ready for start Capacity: 11.840 kW Speed: 11,215 RPM continual Fuel: Natural Gas with input pressure of 28 bar Fuel /gas consumption: around 3,700Nm³/h (cal.value 10.4 kWh/m³) Burners: 14 Start system: electro.hydraulic,110 kW Outlet temperature: 486°C Exhaust gas volume: 131,000m³/h Dimensions: longitudinal-and transverse-force bases Turbine: 9m x 2.2m x 2.8m = 33 tons Strainer: 4m x 2.9m x 3.8m = 4.8 tons Insulating dome: 9m x 2.2m x 3.25m = 7 tons Mounting: On steel skid (with acoustic enclosure) 1.2. REDUCTION GEARBOX Type: Solar Epicyclic Reduction Gearbox Output RPM: 1500 Year Manufactured: 2005 1.3. GENERATOR Manufacturer: Leroy Somer Type / Model: LSA 58 BMCL 14-4P Frequency: 50 Hz Voltage: 5.25 kV Power: 14,800 kVA, PF = 0.8 Speed: 1500 RPM Year manufactured: 2005 2. FIRE PROTECTION SYSTEM 3. CONTROL SYSTEM TURBINE -Turbomach TTS3 4. AUXILIARIES -Lubrication System -Fuel System -Start System electro-hydraulic 110 kW -Air inlet system, 1 stage air filter system -Exhaust system complete with silencer

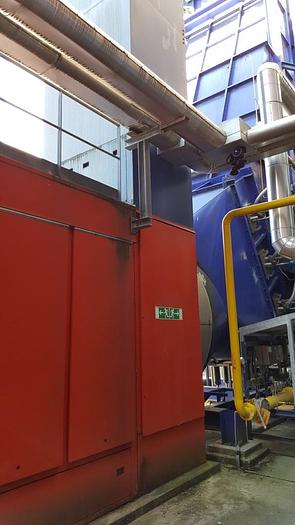

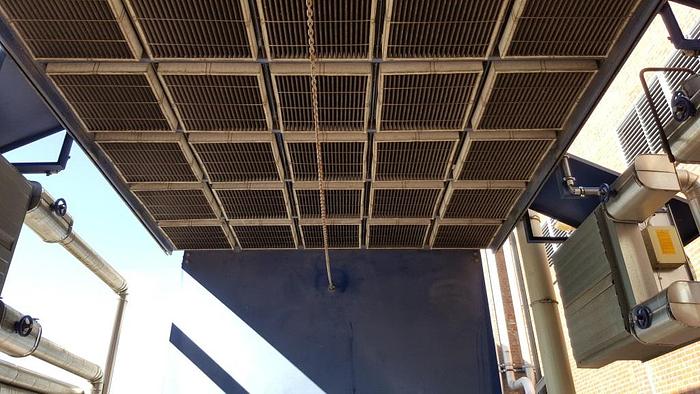

Images provided are stock images for representative purposes only and actuals can be supplied upon request.


Installation and EPC and O&M services available - worldwide - through USP&E.

We look forward to working with you!

Call or email us today at info@uspeglobal.com

Specifications

ManufacturerSolar Turbines
ModelTitan 130
Year2005
ConditionUsed
Stock NumberUSP009247
Capacity11.84 MW
Hours15,500 Hours
