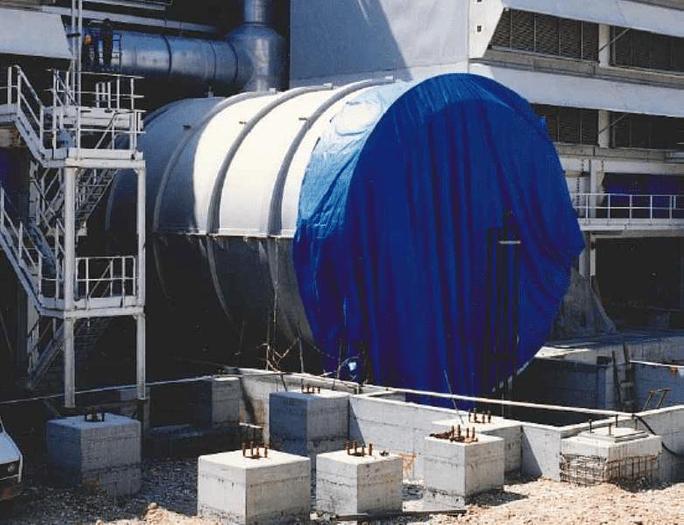

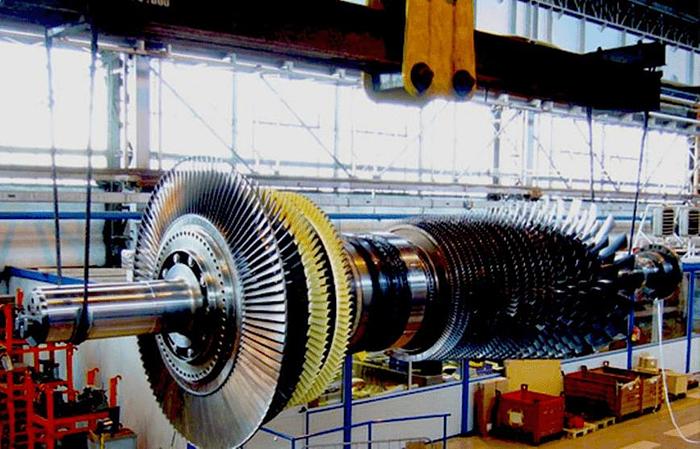

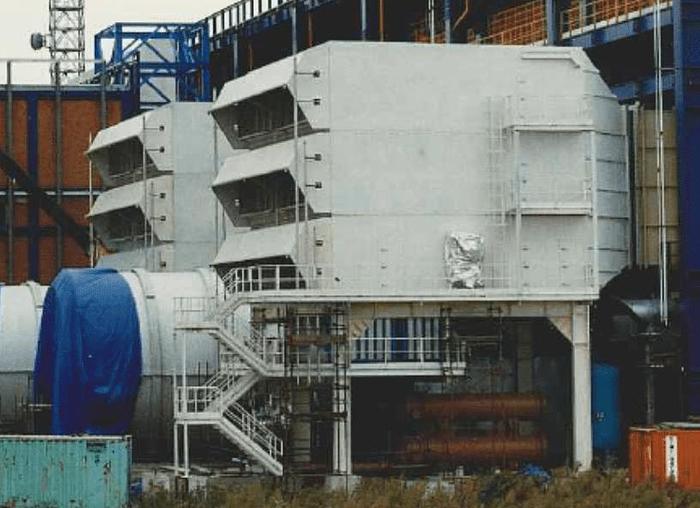

120 MW 1992 Used Fiat Avio TG50D5 Gas Turbine Generator Set
USP&E is selling a 120 MW 1992 Used Fiat Avio TG50D5 Gas Turbine Generator Set
FIAT AVIO TG50D5 GAS TURBINE CONSTRUCTION FEATURES
The performances guaranteed under ISO conditions are as follows:
-Rotation speed: 3,000 RPM
-Basic load power: 122.7 MW (natural gas)
-Peak load power: 132.3 MW (natural gas)
-Basic load power: 119.0 MW (diesel fuel)
-Peak load power: 128.4 MW (diesel fuel)
-Specific basic consumption (natural gas): 2680 kcal / kWh
-Specific peak consumption (natural gas): 2640 kcal / kWh
-Specific basic consumption (diesel fuel): 2710 kcal / kWh
-Specific peak consumption (diesel fuel): 2680 kcal / kWh
-Exhaust gas flow rate (base load): 453 kg/s
-Exhaust gas temperature (base load): 495 °C
-Air outlet temperature: 379 °C
-Air flow exit: 443 kg/s
-Compression ratio (β): 14 / 1
-Air compression stages: n. 19
-Turbine inlet temperature (base load): 1162 °C
-Turbine inlet temperature (peak load): 1208 °C
-Combustion device: n. 18
-Gas expansion stages: n. 4
-Mechanical machine losses: 1456 kW
-Dry emissions (15% O2) base load
--SO2 (100% load): 160 mg/Nm3 (diesel fuel)
--NOX (100% load): 50 ppmv (natural gas)
--NOX (100% load): < 200 ppmv (diesel fuel with N2 < 0,015 mg / Nm3)
--CO: 100 mg/Nm3
The conversion of mechanical energy into electrical energy is carried out by ANSALDO generators.
-Apparent power: 140MVA
-Output Voltage: 15kV
-Power factor: 0.9
-Type: Close. Cooling windings with hydrogen
-Excitation and voltage regulation system: Static thyristor system
-Rotation speed: 3,000 RPM
If you are like us, you read every day about how thousands of fast growth companies struggle to find energy generation that is affordable, reliable and available for immediate shipping and installation on a turnkey basis from a company that really understands the complexities of integration of balance of plant and other site infrastructure.
At USP&E, we have been in business now for over 20 years and have offices in 9 countries. But more importantly, WE ARE OBSESSED WITH EACH CLIENTS JOURNEY TO ENERGY SUSTAINABILITY & RELIABILITY AND ARE DRIVEN TO GUIDE EACH CLIENT TO SUCCESSFUL INTEGRATION OF THE BEST IN CLASS TECHNOLOGIES.
This is important and a huge differentiating factor for our clients because USP&E isn't the hero of our story, you are. We will do everything possible to make sure you are successful, and we have over 20 years of satisfied clients and meaningful, long-term client engagements that prove this out. The potential delays related to permitting, land access, shipping, etc must be dealt with head-on and with urgency. We have helped hundreds of companies like yours for over 20 years.
The process is really simple:
1. Quick, 30 min Engineering/Design Meeting so we Can understand Your project goals, timelines and budgets. ✅
2. Scope of work and supply to match our plants to what you need. ✅
3. Work together to finalise commercial and technical aspects into a contract and move forward with the project. ✅
Please remember, USP&E is not just an equipment broker. We are a GUIDE to energy project excellence. We offer full Engineering, Procurement, Construction and long-term O&M in over 190 countries around the world in order to make sure our client projects are a RESOUNDING success.
Some of the companies we are currently working with include the City of Neom, Barrick Gold, SPACE-X, Firefinch Gold, Kurdistan MOE, Ivanhoe Mining, Boogertman Partners, and Molo Graphite.
At USP&E, we understand how most companies struggle to find energy generation that is affordable, reliable and available for immediate shipping and installation on a turnkey basis. Your partner must be a company that really understands the complexities of integration of balance of plant and other site infrastructure, and not just be a broker. Ideally, your partner offers complete O&M and warranty support services. This is what we have been doing for over 20 years.
|Fuel type||Natural Gas|
