$15,000,000 (USD)

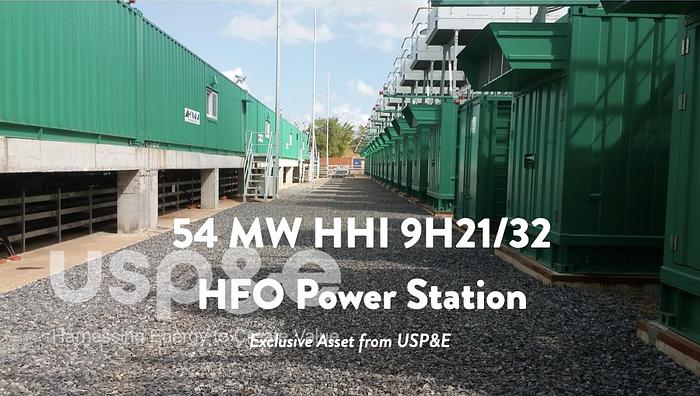

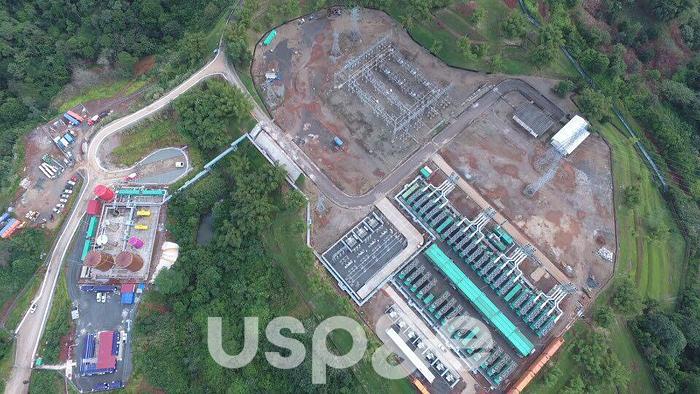

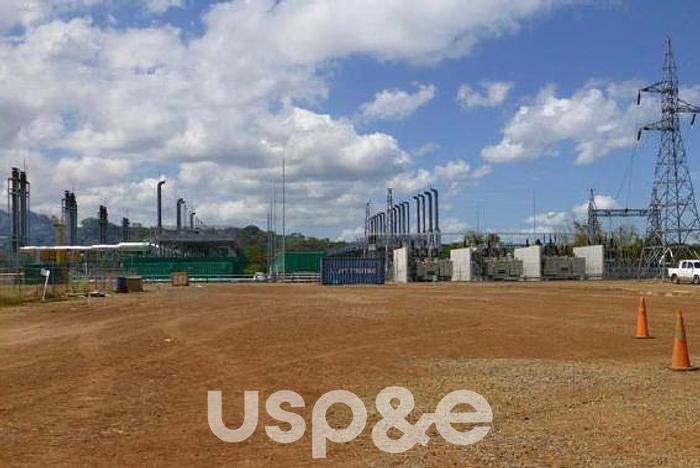

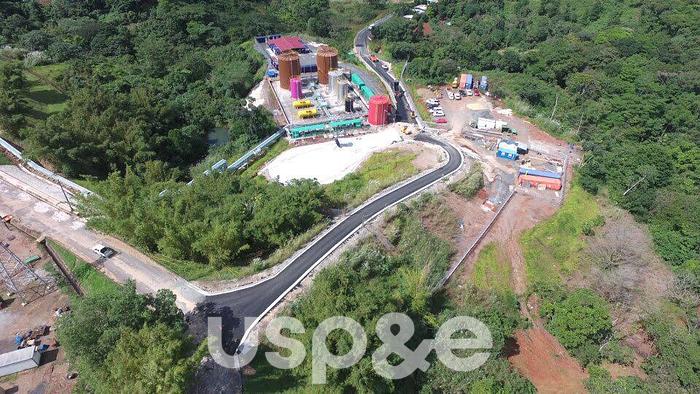

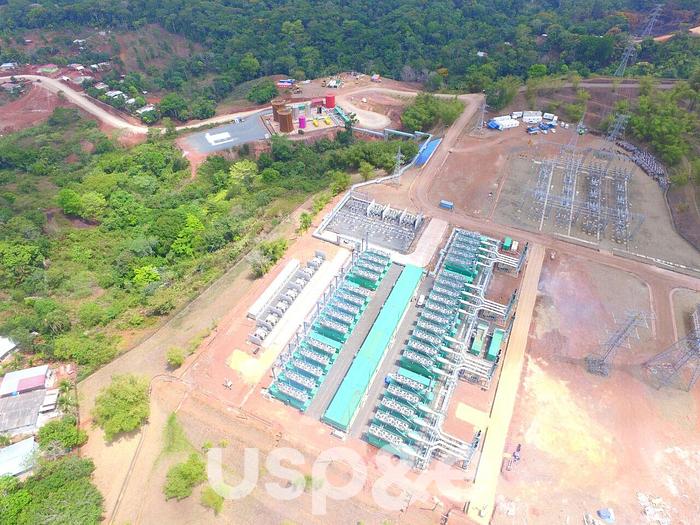

54 MW Low Hour Hyundai Himsen 9H21/32 HFO Packaged Power Station

orCall +1 612-803-8112

Description

See the following specs for this high quality, low hour 54 MW HFO power station -


Exclusively Sold by USP&E. Request a quote to Enter negotiations for this hot product.


GENERAL INFORMATION

 Available Quantity: Thirty-Four (34) Units.

 Operation Hours: 6,200 hr. on average.

 Last Maintenance: 6,000 hr. (HHI Manuals)


TECHNICAL SPECS

 Engine Model: 9H21/32

 Engine Capacity: 1,800 kW

 Gen Capacity: 1,701 kW

 Frequency: 60 Hz.

 Speed 900 rpm.

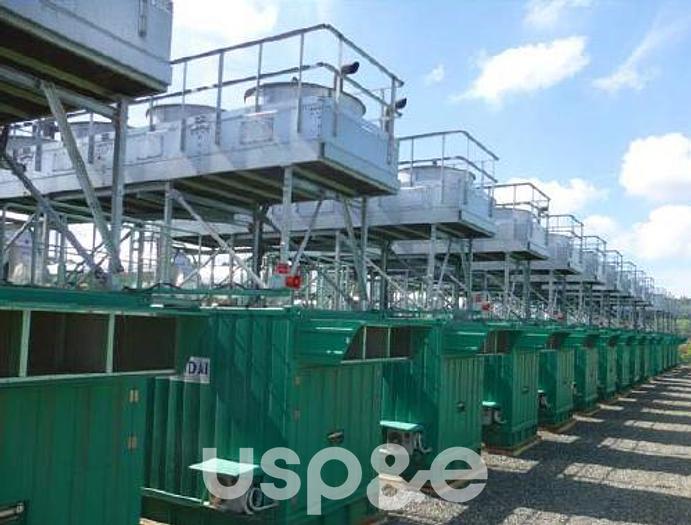

 Cooling Method: Radiator

 Fuel Type: Heavy Fuel Oil / Light Fuel Oil

 SFOC at Genset: 204 g/kWh at 42,700 kJ/kg

 Total Weight: 50 ton.

 Dimension (W*H*L): 2.4m * 3.4 m * 12 m.

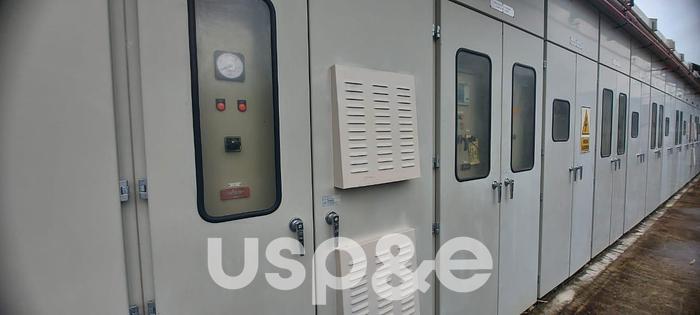

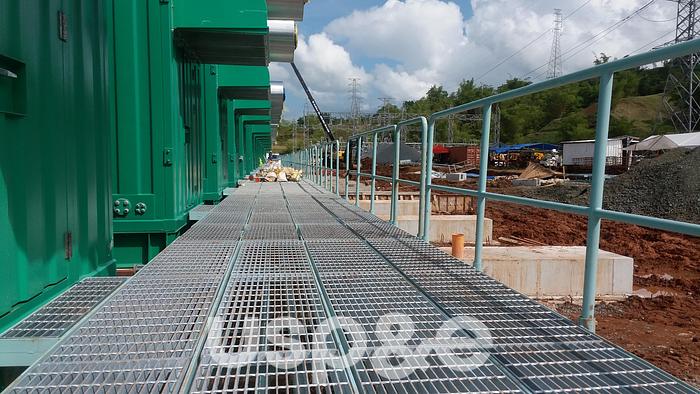

 Enclosure 40’ container, 85 dB(A) @ 1m


OTHER AVAILABLE COMPONENTS

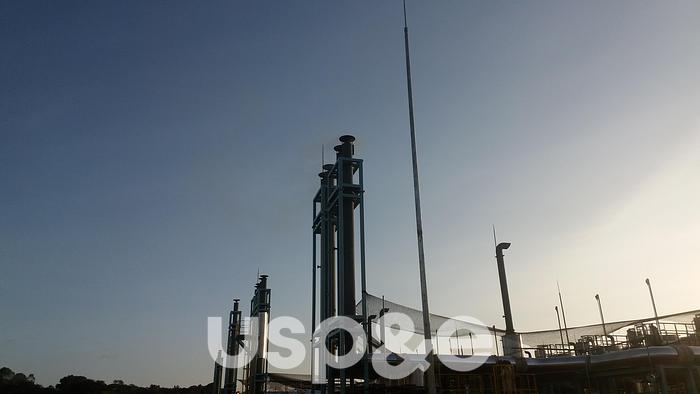

 Exhaust Gas Boiler (Heat Recovery System)

 Pump Station Unit

 HFO Treatment Unit

 Air Compressor Unit

 HFO Purifier Unit

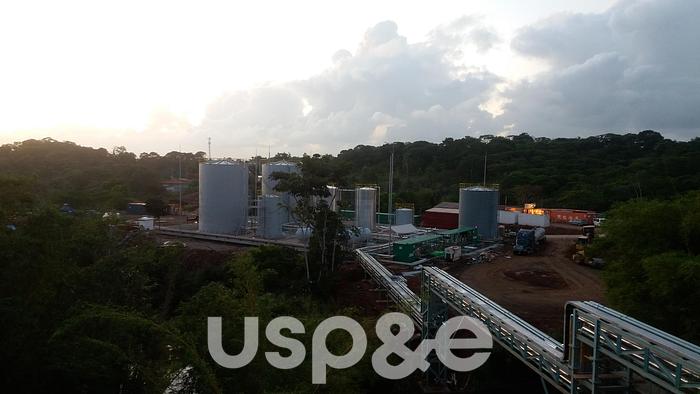

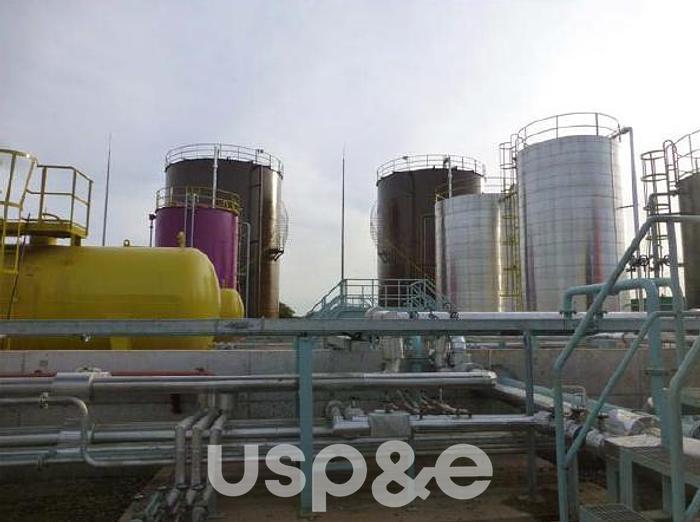

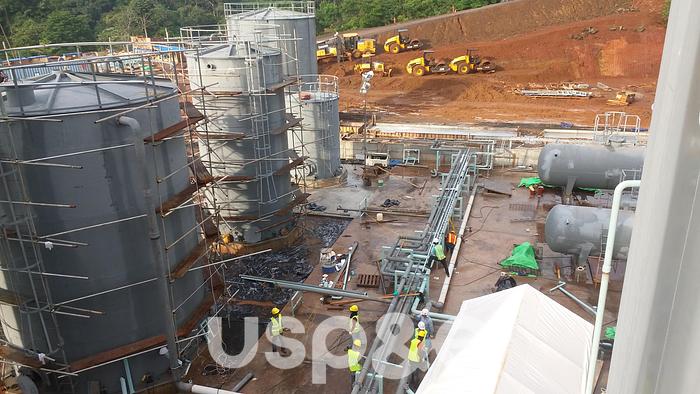

 Fuel Oil and Lube Oil Tanks

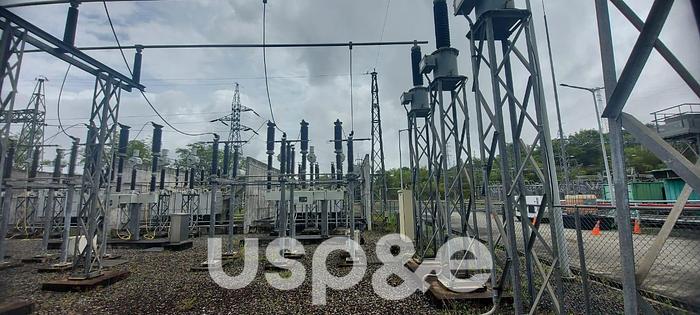

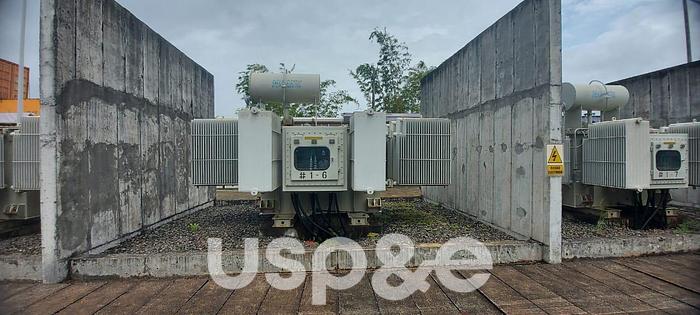

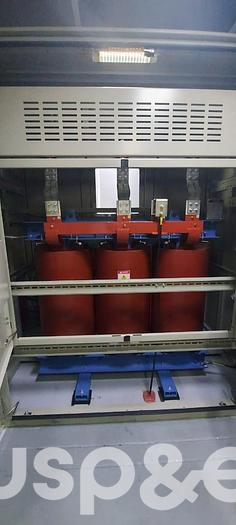

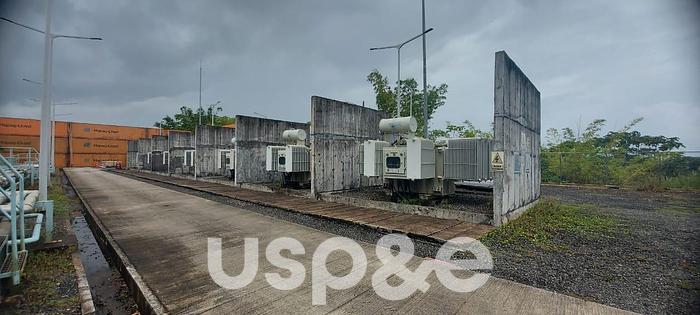

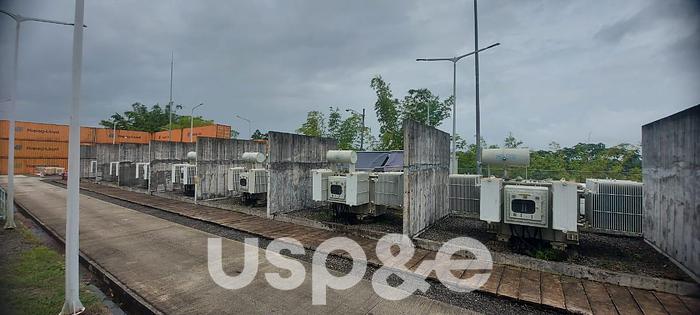

 Step-up transformers 4.16/34.5 & 34.5/115 kV.

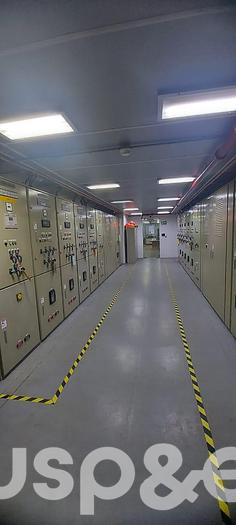

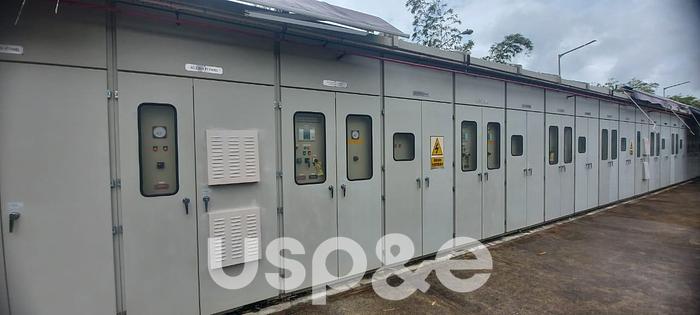

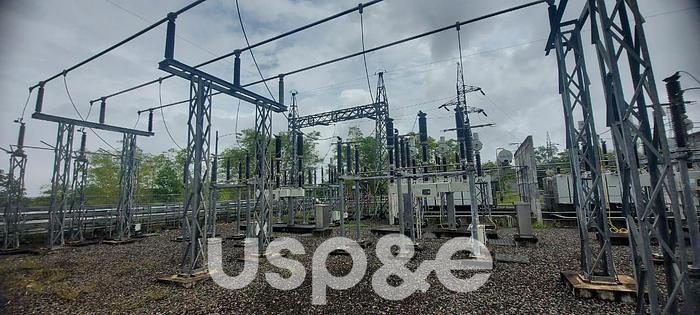

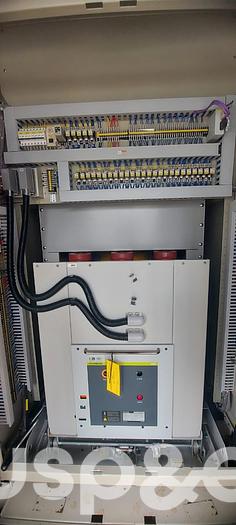

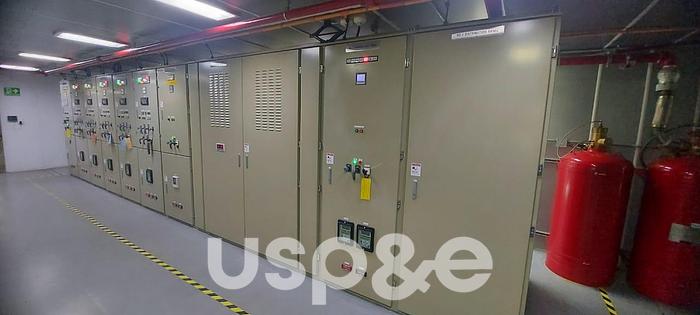

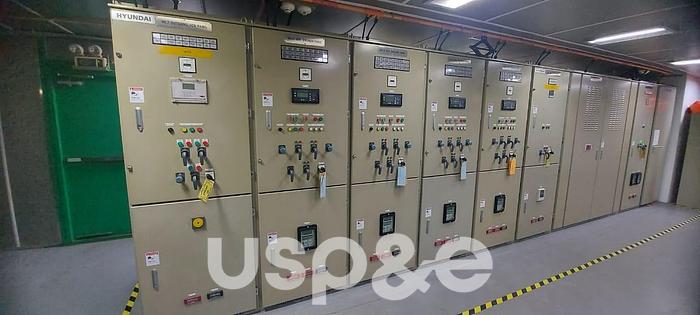

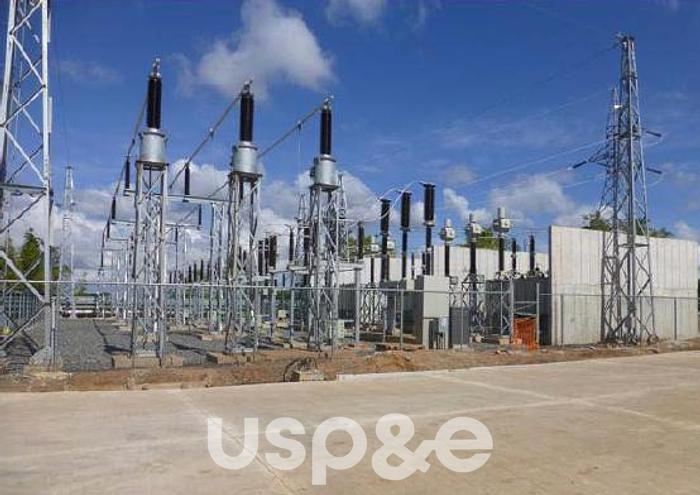

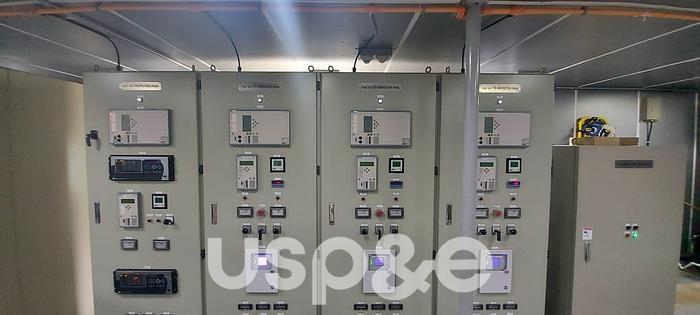

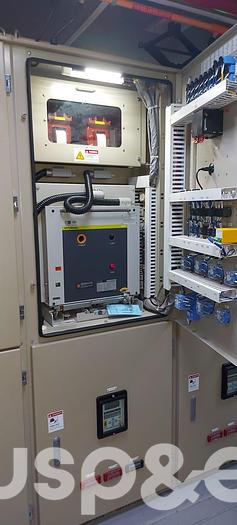

 Switchgears at 4.16, 34.5 & 115 kV.




Specifications

ManufacturerHyundai Himsen
Model9H21/32
ConditionUsed
Stock NumberUSP009293
Wattage54 MW
Hours6200 (Ave.)
Frequency60
Fuel typeHFO
